Bhlaosc: Tá na páirteanna miotail leatháin struchtúracha déanta as plátaí cruach ardchaighdeáin, agus déantar na dromchlaí go léir a fhosfáitiú go leictreastatach agus a spraeáil le trealamh spraeála uathoibríoch allmhairithe, a bhfuil friotaíocht láidir creimeadh acu agus is féidir iad a oiriúnú do thimpeallachtaí úsáide éagsúla.
Chun cáilíocht dromchla maith a chinntiú ar feadh shaol seirbhíse an aonaid. Is féidir sliogáin alúmanaim nó cruach dhosmálta a shaincheapadh de réir riachtanais úsáideoirí.
Tráidire uisce: deartha le uillinn slanted chun scaoileadh réidh uisce díreoite a éascú, uisce ar snámh a sheachaint, agus carnadh uisce sa tráidire uisce a chosc.
Feadán malartaithe teasa: Roghnaítear feadán copair snáithithe go hinmheánach ard-toothed le haghaidh éifeachtacht ard aistrithe teasa.
Eití: Glacadh le eití alúmanam hidrophilic sine wave branda nua, suaitheadh aeir a fheabhsú, comhéifeacht aistrithe teasa a neartú, agus feidhmíocht aistrithe teasa a fheabhsú go mór;
Fan: Brú statach ard, lucht leanúna sreabhadh aiseach rotor seachtrach ard-chumhachta saincheaptha go speisialta, oiriúnach do thimpeallachtaí ard-taise, ardéifeachtúlachta, tomhaltas íseal fuinnimh, uiscedhíonach agus dustproof, le feidhmíocht den scoth; Monarcha lucht leanúna
Tástálacha cothromaíochta statacha agus dinimiciúil a rith roimhe seo;
Díreoite: Roghnaítear feadáin téimh leictreach díreoite cruach dhosmálta ísealchumhachta agus socraítear iad ar bhealach uathúil agus réasúnta, le luas díreoite tapa agus díreoite críochnúil, agus caillteanas teasa á sheachaint.
Leathnaigh saol seirbhíse na feadáin téimh leictreach.
Bosca acomhal leictreach: Tá friotaíocht íseal teochta ag an mbosca acomhal, airíonna uiscedhíonach agus dustproof, ard-mhoilliú lasair, agus tá sé suiteáilte ar an tosaigh le haghaidh sreangú agus cothabháil éasca.
Spásáil eite: Is é an spásáil caighdeánach ná 4.5mm, 6mm, agus 9mm; Spásáil bileog inoiriúnaithe de 12mm agus 18mm chun freastal ar riachtanais úsáideoirí.
Cineál cuisneáin: Is féidir cuisneán R404A a roghnú, is féidir R507A, R22, R134A, R407C, agus R410A a shaincheapadh de réir riachtanais an úsáideora.
evaporator:
1. Déanann leagan amach uathúil cuachta feadán machnamh iomlán ar shaincheisteanna tábhachtacha amhail athruithe ar staid cuisneáin, ráta sreafa, titim brú, agus aonfhoirmeacht dáileadh faoi choinníollacha galú, rud a fhágann go bhfuil feidhmíocht aistrithe teasa níos airde ar an evaporator dromchla with;
2. Dearadh malartóra teasa éifeachtach agus dlúth, le feadáin malartaithe teasa snáithithe inmheánacha aistrithe teasa treisithe forc;
3. Déantar feadáin malartaithe teasa agus eití alúmanaim hydrophilic a leathnú go meicniúil chun feadáin copair a nascadh go docht le leatháin alúmanaim, chun an éifeachtúlacht aistrithe teasa is fearr a bhaint amach.
4. Tá deighilteoir leachtach agus ciorcad cuisneáin an evaporator optamaithe chun an éifeachtúlacht malartú teasa is fearr a chinntiú i dtimpeallachtaí iarratais éagsúla.
5. Tá dearadh uathúil an sraonaire gaoithe suite faoi bhun an malartóra teasa chun ciorcaid ghearr aeir a chosc.

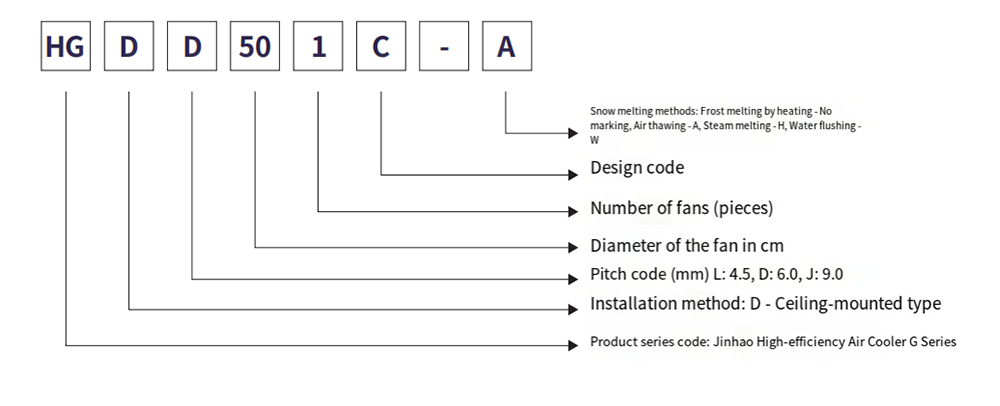

cur síos ar an Múnla
Tábla paraiméadar teicniúil (R404A)
Paraiméadair theicniúla d'fhuaraitheoir aeir ardéifeachtúlachta le haghaidh uasteorainn sioc leictreach
Spásáil scannáin: 4.5mm
| Múnla | cumas fuaraithe kW | Toirt feadán | Paraiméadair lucht leanúna | Teas leictreach leá sneachta | |||||
| Sc1 | Sc2 | dm² | Líon na lanna x trastomhas | cumhacht W | Toirt aeir m³/u | Raon m | brainse corn kW* | Pana uisce kW* brainse | |
| HGDL 501C | 6.7 | 4.6 | 3.2 | 1×500 | 1×414 | 5000 | 12 | 0.28*6 | 0.28*2 |
| HGDL501D | 8.1 | 5.6 | 4.3 | 1×500 | 1x460 | 4900 | 12 | 0.30*6 | 0. 30*2 |
| HGDL 501E | 9.8 | 6.7 | 5.4 | 1×500 | 1x460 | 4500 | 12 | 0.30*8 | 0. 30*2 |
| HGDL601E | 16.6 | 11.4 | 9.2 | 1×600 | 1x780 | 7500 | 15 | 0. 40*8 | 0.4*2 |
| HGDL 502D | 22.2 | 15.3 | 11.8 | 2×500 | 2x460 | 11500 | 13 | 0.72*6 | 0.72*2 |
| HGDL552D | 25.4 | 17.5 | 13.2 | 2×550 | 2x600 | 13700 | 13 | 0.72*6 | 0.72*6 |
| HGDL602D | 28.9 | 19.9 | 14.7 | 2×600 | 2x780 | 16500 | 16 | 0.72*10 | 0.72*2 |
| HGDL602E | 33.8 | 23.3 | 18.4 | 2×600 | 2x780 | 15200 | 16 | 0.72*10 | 0.72*2 |
| HGDL602F | 37.8 | 26.1 | 22.1 | 2×600 | 2x780 | 14500 | 16 | 0.72*10 | 0.72*2 |
| HGDL632D | 40.7 | 28.1 | 23.7 | 2×630 | 2x800 | 19000 | 19 | 0.95*10 | 0.95*2 |
| HGDL632E | 44.1 | 30.4 | 26.9 | 2×630 | 2x800 | 18000 | 19 | 0.87*12 | 0.87*4 |
| HGDL603F | 54.5 | 37.6 | 32.3 | 3×600 | 3x780 | 20500 | 17 | 1.03*12 | 1.03*4 |
| HGDL633F | 66.8 | 46.1 | 38.8 | 3×630 | 3x800 | 25500 | 20 | 1.03*14 | 1.03*4 |
Tábla paraiméadar teicniúil (R404A)
Paraiméadair theicniúla d'fhuaraitheoir aeir ardéifeachtúlachta le haghaidh uasteorainn sioc leictreach
Spásáil scannáin: 6.0mm
| Múnla | cumas fuaraithe kW | Toirt feadán | Paraiméadair lucht leanúna | Teas leictreach leá sneachta | ||||||
| Sc1 | Sc2 | SC3 | dm² | Líon na lanna x trastomhas | cumhacht W | Toirt aeir m³/u | Raon m | brainse corn kW* | Tráidire uisce kW* brainse | |
| HGDD501C | 5.6 | 4.0 | 3.2 | 3.2 | 1×500 | 1×414 | 5200 | 12 | 0.28*8 | 0.28*2 |
| HGDD501D | 7.1 | 5.1 | 4.0 | 4.3 | 1×500 | 1x460 | 5100 | 12 | 0.30*8 | 0. 30*2 |
| HGDD501E | 82 | 5.9 | 4.6 | 5.4 | 1×500 | 1x460 | 4800 | 12 | 0.30*10 | 0. 30*2 |
| HGDD601E | 14.4 | 10.3 | 8.1 | 9.2 | 1×600 | 1x780 | 8200 | 15 | 0. 40*10 | 0.4*2 |
| HGDD502D | 183 | 13.1 | 10.3 | 11.8 | 2×500 | 2x460 | 12000 | 13 | 0.72*8 | 0.72*2 |
| HGDD552D | 21.8 | 15.1 | 11.9 | 13.2 | 2×550 | 2x600 | 14500 | 13 | 0.72*8 | 0.72*6 |
| HGDD602D | 24.1 | 17.2 | 13.6 | 14.7 | 2×600 | 2x780 | 17000 | 16 | 0.72*12 | 0.72*2 |
| HGDD602E | 29.1 | 20.8 | 164 | 18.4 | 2×600 | 2x780 | 16400 | 16 | 0.72*12 | 0.72*2 |
| HGDD602F | 32.1 | 22.9 | 18.1 | 22.1 | 2×600 | 2x780 | 15500 | 16 | 0.72*12 | 0.72*2 |
| HGDD632D | 33.7 | 24.1 | 19.0 | 23.7 | 2×630 | 2x800 | 20000 | 19 | 0.95*12 | 0.95*2 |
| HGDD632E | 37.2 | 26.6 | 21.0 | 26.9 | 2×630 | 2x800 | 19000 | 19 | 0.87*12 | 0.87*4 |
| HGDD603F | 46.8 | 33.4 | 264 | 32.3 | 3×600 | 3x780 | 22000 | 17 | 1.03*12 | 1.03*4 |
| HGDD633F | 56.7 | 40.5 | 32.0 | 38.8 | 3×630 | 3x800 | 26500 | 20 | 1.03*14 | 1.03*4 |
Tábla paraiméadar teicniúil (R404A)
Paraiméadair theicniúla d'fhuaraitheoir aeir ardéifeachtúlachta le haghaidh uasteorainn sioc leictreach
Spásáil scannáin: 9.0mm
| Múnla | cumas fuaraithe kW | Toirt feadán | Paraiméadair lucht leanúna | Teas leictreach leá sneachta | ||||||
| SC3 | SC4 | SC5 | dm² | Líon na lanna x trastomhas | cumhacht W | Toirt aeir m³/u | Raon m | brainse corn kW* | Tráidire uisce kW* brainse | |
| HGDJ501C | 2.5 | 2.0 | 1.9 | 3.2 | 1×500 | 1×414 | 5300 | 12 | 0.28*8 | 0.28*2 |
| HGDJ501D | 3.3 | 2.6 | 2.5 | 4.3 | 1×500 | 1x460 | 5500 | 12 | 0.30*8 | 0. 30*2 |
| HGDJ501E | 3.7 | 3.0 | 2.9 | 5.4 | 1×500 | 1x460 | 5100 | 12 | 0.30*10 | 0. 30*2 |
| HGDJ601E | 6.5 | 5.2 | 5.0 | 9.2 | 1×600 | 1x780 | 8300 | 15 | 0. 40*10 | 0.4*2 |
| HGDJ502D | 8.3 | 6.6 | 6.3 | 11.8 | 2×500 | 2x460 | 12500 | 13 | 0.72*8 | 0.72*2 |
| HGDJ552D | 8.7 | 6.9 | 6.7 | 13.2 | 2×550 | 2x600 | 15000 | 13 | 0.72*8 | 0.72*6 |
| HGDJ602D | 10.8 | 8.5 | 7.8 | 14.7 | 2×600 | 2x780 | 17500 | 16 | 0.72*12 | 0.72*2 |
| HGDJ602E | 13.3 | 10.6 | 10.2 | 18.4 | 2×600 | 2×780 | 17000 | 16 | 0.72*12 | 0.72*2 |
| HGDJ602F | 14.5 | 11.6 | 11.1 | 22.1 | 2×600 | 2x780 | 16000 | 16 | 0.72*12 | 0.72*2 |
| HGDJ632D | 15.8 | 12.6 | 12.1 | 23.7 | 2×630 | 2x800 | 21000 | 19 | 0.95*12 | 0.95*2 |
| HGDJ632E | 17.7 | 14.1 | 13.5 | 26.9 | 2×630 | 2x800 | 20500 | 19 | 0.87*12 | 0.87*4 |
| HGDJ603F | 21.4 | 17.1 | 16.4 | 32.3 | 3×600 | 3x780 | 23000 | 17 | 1.03*12 | 1.03*4 |
| HGDJ633F | 25.4 | 20.3 | 19.5 | 38.8 | 3×630 | 3x800 | 27000 | 20 | 1.03*14 | 1.03*4 |

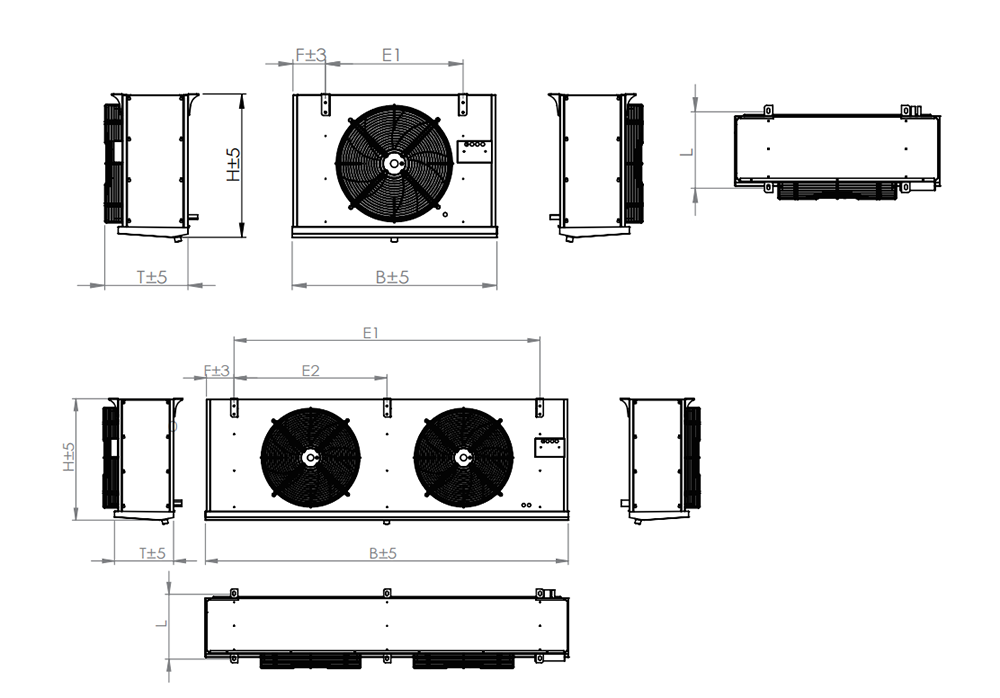

Cuma agus toisí suiteála
Cuma agus toisí suiteála of a high-efficiency electric frost ceiling air cooler
Spásáil scannáin: 4.5mm
| Múnla | Sonraíocht Chomhéadain(mm) | Toisí b*T*H | Toisí suiteála | meáchan | marcáil léarscáil imlíne | |||||
| Feadán ionraoin / fillte | Draenáil/(orlach) | LxWxH(mm) | L | E1 | E2 | E3 | F | stair leighis | ||
| HGDL501C | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 36 | A |
| HGDL501D | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 38 | A |
| HGDL501E | Φ12/Φ22 | G1 | 952*490*674 | 430 | 640 | / | / | 126 | 44 | A |
| HGDL601E | Φ16/Φ28 | G1 | 1172*490*831 | 430 | 860 | / | / | 126 | 56 | A |
| HGDL502D | Φ16/Φ35 | G1 | 1992*400*680 | 340 | 840 | 840 | / | 126 | 80 | b |
| HGDL552D | Φ16/Φ35 | G1 | 1992*400*760 | 340 | 840 | 840 | / | 126 | 85 | b |
| HGDL602D | Φ22/Φ42 | G1-1/2 | 1992*400*831 | 340 | 840 | 840 | / | 126 | 95 | b |
| HGDL602E | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 115 | b |
| HGDL602F | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 125 | b |
| HGDL632D | Φ22/Φ42 | G1-1/2 | 2552*400*984 | 340 | 1120 | 1120 | / | 126 | 144 | b |
| HGDL632E | Φ22/Φ42 | G1-1/2 | 2352*490*984 | 430 | 1020 | 1020 | / | 126 | 160 | b |
| HGDL603F | Φ25/Φ50 | G1-1/2 | 2751*490*831 | 430 | 813 | 813 | 813 | 126 | 166 | C |
| HGDL633F | Φ25/Φ50 | G2 | 2751*490*984 | 430 | 813 | 813 | 813 | 126 | 196 | C |
Cuma agus toisí suiteála
Cuma agus toisí suiteála of a high-efficiency electric frost ceiling air cooler
Spásáil scannáin: 6.0mm
| Múnla | Sonraíocht Chomhéadain(mm) | Toisí b*T*H | Toisí suiteála | meáchan | marcáil léarscáil imlíne | |||||
| Feadán ionraoin / fillte | Draenáil/(orlach) | LxWxH(mm) | L | E1 | E2 | E3 | F | stair leighis | ||
| HGDD5011C | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 35 | |
| HGDD50i¹D | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 37 | |
| HGDD501E | Φ12/Φ22 | G1 | 952*490*674 | 430 | 640 | / | / | 126 | 43 | |
| HGDD60i¹E | Φ16/Φ28 | G1 | 1172*490*831 | 430 | 860 | / | / | 126 | 57 | A |
| HGDD502D | Φ16/Φ35 | G1 | 1992*400*680 | 340 | 840 | 840 | / | 126 | 78 | b |
| HGDD552D | Φ16/Φ35 | G1 | 1992*400*760 | 340 | 840 | 840 | / | 126 | 86 | b |
| HGDD602D | Φ22/Φ42 | G1-1/2 | 1992*400*831 | 340 | 840 | 840 | / | 126 | 93 | b |
| HGDD602E | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 112 | b |
| HGDD602F | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 122 | b |
| HGDD632D | Φ22/Φ42 | G1-1/2 | 2552*400*984 | 340 | 1120 | 1120 | / | 126 | 140 | b |
| HGDD632E | Φ22/Φ42 | G1-1/2 | 2352*490*984 | 430 | 1020 | 1020 | / | 126 | 154 | b |
| HGDD603F | Φ25/Φ50 | G1-1/2 | 2751*490*831 | 430 | 813 | 813 | 813 | 126 | 162 | G |
| HGDD633F | Φ25/Φ50 | G2 | 2751*490*984 | 430 | 813 | 813 | 813 | 126 | 192 | C |
Cuma agus toisí suiteála
Cuma agus toisí suiteála of a high-efficiency electric frost ceiling air cooler
Spásáil scannáin: 9.0mm
| Múnla | Sonraíocht Chomhéadain(mm) | Toisí b*T*H | Toisí suiteála | meáchan | marcáil léarscáil imlíne | |||||
| Feadán ionraoin / fillte | Draenáil/(orlach) | LxWxH(mm) | L | E1 | E2 | E3 | F | stair leighis | ||
| HGDJ501C | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 34 | |
| HGDJ501D | Φ12/Φ22 | G3/4 | 952*400*674 | 340 | 640 | / | / | 126 | 36 | |
| HGDJ501E | Φ12/Φ22 | G1 | 952*490*674 | 430 | 640 | / | / | 126 | 42 | |
| HGDJ601E | Φ16/Φ28 | G1 | 1172*490*831 | 430 | 860 | / | / | 126 | 55 | A |
| HGDJ502D | Φ16/Φ35 | G1 | 1992*400*680 | 340 | 840 | 840 | / | 126 | 76 | b |
| HGDJ552D | Φ16/Φ35 | G1 | 1992*400*760 | 340 | 840 | 840 | / | 126 | 87 | b |
| HGDJ602D | Φ22/Φ42 | G1-1/2 | 1992*400*831 | 340 | 840 | 840 | / | 126 | 94 | b |
| HGDJ602E | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 114 | b |
| HGDJ602F | Φ22/Φ42 | G1-1/2 | 1992*490*831 | 430 | 840 | 840 | / | 126 | 121 | b |
| HGDJ632D | Φ22/Φ42 | G1-1/2 | 2552*400*984 | 340 | 1120 | 1120 | / | 126 | 139 | b |
| HGDJ632E | Φ22/Φ42 | G1-1/2 | 2352*490*984 | 430 | 1020 | 1020 | / | 126 | 160 | b |
| HGDJ603F | Φ25/Φ50 | G1-1/2 | 2751*490*831 | 430 | 813 | 813 | 813 | 126 | 162 | C |
| HGDJ633F | Φ25/Φ50 | G2 | 2751*490*984 | 430 | 813 | 813 | 813 | 126 | 190 | C |
Nóta 1: Caighdeáin Dearaidh:
| Coinníollacha caighdeánacha aistrithe teasa | Teocht an aeir inlet | Teocht galú | Teocht choibhneasta | Teocht choibhneasta | Sárteas |
| Sc1 | 10 ℃ | 0 ℃ | 85% | 1.35 | 6.5K |
| Sc2 | 0 ℃ | -8 ℃ | 85% | 1.15 | 5.2K |
| SC3 | -18 ℃ | -25 ℃ | 95% | 1.05 | 4.6K |
| SC4 | -25 ℃ | -31 ℃ | 95% | 1.01 | 3.9K |
| SC5 | -34 ℃ | -40 ℃ | 95% | 1.01 | 3.9K |
Nóta 2: Fachtóir tiontaithe le haghaidh cuisneáin
| Cuisneáin | Coinníollacha oibriúcháin | R22 | R404A | R507 | R134a |
| Fachtóir ceartúcháin | Sc1 | 0.95 | 1 | 1 | 0.93 |
| Fachtóir ceartúcháin | Sc2 | 0.95 | 1 | 1 | 0.91 |
| Fachtóir ceartúcháin | SC3 | 0.95 | 1 | 1 | 0.85 |
